Hydrovane Rotary Compressors
Hypac - Plug and Play
Hypacs are fully integrated compressor packages that are available as a factory built package or can be supplied as a kit for local assembly. Typical applications include coordinate measuring, dentistry, electronics, laboratories, laser cutting, machine tools, optical, packaging, spraying, printing, robotics and a multitude of OEM applications.

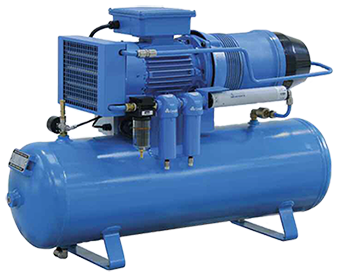

HV Series 1.5-5.5 HP (1.1-4 kw) - 50 Hz Membrane Dryer Range
The Hydrovane HV (PUTS) series horizontal Open format (unenclosed) fixed speed compressors are available as fully integrated compressor packages.
A 12 month standard warranty is available on the HV 1.5 HP (1.1 kW) to 5.5 HP (4 kW) Hydrovane Hypac standard product range.
- HV1.1 and 2.2 kW - 20 gallon (75 litre) receiver
- HV4 kW - 53 gallon (200 litre) receiver
- Output: 4 to 20 CFM (0.12 to 0.54 m³/min)
- Horizontal open compressor
- Direct Drive
- Ultra dry air - dew point 86°F (30°C) below ambient
- In-line Filtration (0.01 micron)
- Aftercooler for primary water separation
- Membrane dryer technology
- CF series filtration
- Automatic Stop/Start
- Fully connected and ready to run
HV Series 5-30 HP (4-22 kW) - 50 Hz Refrigerant Dryer Range
The Hydrovane HV (ACE) series of vertical enclosed range of compressors (fixed and regulated speed) are available in 3 versions - ACER, ACED and AERD. All fully connected and ready to run.
An industry leading Advance 10 year extended warranty is available on all Hydrovane standard products (Unless specified).
- Hydrovane vertical compressor
- Integrated with receiver (ACER)
- Integrated with refrigerant dryer (ACED)
- Integrated with refrigerant dryer & receiver (AERD)
- HV4 to 7 kW = 250 litre receiver
- HV11 to 22 kW = 272 litre receiver
- X series water trap
- Refrigerant Dryer Pressure dew point 3°C
- In-line filter (1 micron)
- Regulated Speed option
- Automatic Start/Stop option
50 Hz Fixed Speed Model Range
| Model | Part Number | Motor Power | Starter | Voltage | Hz | Speed | Delivery Pressure | Volume |
|---|---|---|---|---|---|---|---|---|
| 400V, 3 Phase, 101.5 PSI (7 bar) | ||||||||
| HV04(ACER) | V04ACER07-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 24.0 cfm (0.68 m³/min) |
| HV04(ACED) | V04ACER07-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 24.0 cfm (0.68 m³/min) |
| HV04(AERD) | V04ACER07-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 24.0 cfm (0.68 m³/min) |
| HV05(ACER) | V05ACER07-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 32.1 cfm (0.91 m³/min) |
| HV05(ACED) | V05ACER07-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 32.1 cfm (0.91 m³/min) |
| HV05(AERD) | V05ACER07-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 32.1 cfm (0.91 m³/min) |
| HV07(ACER) | V07ACER07-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 44.1 cfm (1.25 m³/min) |
| HV07(ACED) | V07ACER07-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 44.1 cfm (1.25 m³/min) |
| HV07(AERD) | V07ACER07-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 101.5 psi (7.0 bar) | 44.1 cfm (1.25 m³/min) |
| 400V, 3 Phase, 116 PSI (8 bar) | ||||||||
| HV11(ACER) | V11ACER08-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 57.6 cfm (1.63 m³/min) |
| HV11(ACED) | V11ACER08-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 57.6 cfm (1.63 m³/min) |
| HV11(AERD) | V11ACER08-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 57.6 cfm (1.63 m³/min) |
| HV15(ACER) | V15ACER08-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 78.0 cfm (2.21 m³/min) |
| HV15(ACED) | V15ACER08-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 78.0 cfm (2.21 m³/min) |
| HV15(AERD) | V15ACER08-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 78.0 cfm (2.21 m³/min) |
| HV18(ACER) | V18ACER08-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 101.7 cfm (2.88 m³/min) |
| HV18(ACED) | V18ACER08-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 101.7 cfm (2.88 m³/min) |
| HV18(AERD) | V18ACER08-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 101.7 cfm (2.88 m³/min) |
| HV22(ACER) | V22ACER08-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 127.1 cfm (3.60 m³/min) |
| HV22(ACED) | V22ACER08-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 127.1 cfm (3.60 m³/min) |
| HV22(AERD) | V22ACER08-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 116.0 psi (8.0 bar) | 127.1 cfm (3.60 m³/min) |
| 400V, 3 Phase, 145 PSI (10 bar) | ||||||||
| HV04(ACER) | V04ACER10-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 20.1 cfm (0.57 m³/min) |
| HV04(ACED) | V04ACER10-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 20.1 cfm (0.57 m³/min) |
| HV04(AERD) | V04ACER10-4035S500 | 5 HP (4.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 20.1 cfm (0.57 m³/min) |
| HV05(ACER) | V05ACER10-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 25.1 cfm (0.71 m³/min) |
| HV05(ACED) | V05ACER10-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 25.1 cfm (0.71 m³/min) |
| HV05(AERD) | V05ACER10-4035S500 | 7 HP (5.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 25.1 cfm (0.71 m³/min) |
| HV07(ACER) | V07ACER10-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 35.3 cfm (1.00 m³/min) |
| HV07(ACED) | V07ACER10-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 35.3 cfm (1.00 m³/min) |
| HV07(AERD) | V07ACER10-4035S500 | 10 HP (7.5 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 35.3 cfm (1.00 m³/min) |
| HV11(ACER) | V11ACER10-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 49.8 cfm (1.41 m³/min) |
| HV11(ACED) | V11ACER10-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 49.8 cfm (1.41 m³/min) |
| HV11(AERD) | V11ACER10-4035S600 | 15 HP (11.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 49.8 cfm (1.41 m³/min) |
| HV15(ACER) | V15ACER10-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 71.0 cfm (2.01 m³/min) |
| HV15(ACED) | V15ACER10-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 71.0 cfm (2.01 m³/min) |
| HV15(AERD) | V15ACER10-4035S600 | 20 HP (15.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 71.0 cfm (2.01 m³/min) |
| HV18(ACER) | V18ACER10-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 90.1 cfm (2.55 m³/min) |
| HV18(ACED) | V18ACER10-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 90.1 cfm (2.55 m³/min) |
| HV18(AERD) | V18ACER10-4035S400 | 24 HP (18.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 90.1 cfm (2.55 m³/min) |
| HV22(ACER) | V22ACER10-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 104.5 cfm (2.96 m³/min) |
| HV22(ACED) | V22ACER10-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 104.5 cfm (2.96 m³/min) |
| HV22(AERD) | V22ACER10-4035S400 | 29 HP (22.0 kW) | SD | 3ph/400V | 50 Hz | 1,450 rpm | 145.0 psi (10.0 bar) | 104.5 cfm (2.96 m³/min) |
50 Hz Variable Speed Model Range
| Model | Part Number | Motor Power | Starter | Voltage | Hz | Speed | Delivery Pressure | Volume |
|---|---|---|---|---|---|---|---|---|
| 400V, 3 Phase, 87 PSI (6 bar) target pressure | ||||||||
| HV07RS(ACER) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 87.0 psi (6.0 bar) | 41.7 cfm (1.18 m³/min) |
| HV07RS(ACED) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 87.0 psi (6.0 bar) | 41.7 cfm (1.18 m³/min) |
| HV07RS(AERD) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 87.0 psi (6.0 bar) | 41.7 cfm (1.18 m³/min) |
| HV11RS(ACER) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 87.0 psi (6.0 bar) | 61.4 cfm (1.74 m³/min) |
| HV11RS(ACED) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 87.0 psi (6.0 bar) | 61.4 cfm (1.74 m³/min) |
| HV11RS(AERD) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 87.0 psi (6.0 bar) | 61.4 cfm (1.74 m³/min) |
| HV15RS(ACER) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 80.9 cfm (2.29 m³/min) |
| HV15RS(ACED) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 80.9 cfm (2.29 m³/min) |
| HV15RS(AERD) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 80.9 cfm (2.29 m³/min) |
| HV18RS(ACER) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 104.5 cfm (2.96 m³/min) |
| HV18RS(ACED) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 104.5 cfm (2.96 m³/min) |
| HV18RS(AERD) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 104.5 cfm (2.96 m³/min) |
| HV22RS(ACER) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 124.7 cfm (3.53 m³/min) |
| HV22RS(ACED) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 124.7 cfm (3.53 m³/min) |
| HV22RS(AERD) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 87.0 psi (6.0 bar) | 124.7 cfm (3.53 m³/min) |
| 400V, 3 Phase, 116 PSI (8 bar) target pressure | ||||||||
| HV07RS(ACER) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 116.0 psi (8.0 bar) | 37.4 cfm (1.06 m³/min) |
| HV07RS(ACED) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 116.0 psi (8.0 bar) | 37.4 cfm (1.06 m³/min) |
| HV07RS(AERD) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 116.0 psi (8.0 bar) | 37.4 cfm (1.06 m³/min) |
| HV11RS(ACER) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 116.0 psi (8.0 bar) | 55.1 cfm (1.56 m³/min) |
| HV11RS(ACED) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 116.0 psi (8.0 bar) | 55.1 cfm (1.56 m³/min) |
| HV11RS(AERD) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 116.0 psi (8.0 bar) | 55.1 cfm (1.56 m³/min) |
| HV15RS(ACER) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 71.7 cfm (2.03 m³/min) |
| HV15RS(ACED) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 71.7 cfm (2.03 m³/min) |
| HV15RS(AERD) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 71.7 cfm (2.03 m³/min) |
| HV18RS(ACER) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 96.8 cfm (2.74 m³/min) |
| HV18RS(ACED) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 96.8 cfm (2.74 m³/min) |
| HV18RS(AERD) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 96.8 cfm (2.74 m³/min) |
| HV22RS(ACER) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 113.7 cfm (3.22 m³/min) |
| HV22RS(ACED) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 113.7 cfm (3.22 m³/min) |
| HV22RS(AERD) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 116.0 psi (8.0 bar) | 113.7 cfm (3.22 m³/min) |
| 400V, 3 Phase, 145 PSI (10 bar) target pressure | ||||||||
| HV07RS(ACER) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 145.0 psi (10.0 bar) | 33.5 cfm (0.95 m³/min) |
| HV07RS(ACED) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 145.0 psi (10.0 bar) | 33.5 cfm (0.95 m³/min) |
| HV07RS(AERD) | V07ACER07-4035V500 | 10 HP (7.5 kW) | VSD | 3ph/400V | 50 Hz | 870-2220 rpm | 145.0 psi (10.0 bar) | 33.5 cfm (0.95 m³/min) |
| HV11RS(ACER) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 145.0 psi (10.0 bar) | 48.4 cfm (1.37 m³/min) |
| HV11RS(ACED) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 145.0 psi (10.0 bar) | 48.4 cfm (1.37 m³/min) |
| HV11RS(AERD) | V11ACER08-4035V600 | 15 HP (11.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1900 rpm | 145.0 psi (10.0 bar) | 48.4 cfm (1.37 m³/min) |
| HV15RS(ACER) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 60.7 cfm (1.72 m³/min) |
| HV15RS(ACED) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 60.7 cfm (1.72 m³/min) |
| HV15RS(AERD) | V15ACER08-4035V600 | 20 HP (15.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 60.7 cfm (1.72 m³/min) |
| HV18RS(ACER) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 88.6 cfm (2.51 m³/min) |
| HV18RS(ACED) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 88.6 cfm (2.51 m³/min) |
| HV18RS(AERD) | V18ACER08-4035V400 | 25 HP (18.5 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 88.6 cfm (2.51 m³/min) |
| HV22RS(ACER) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 108.4 cfm (3.07 m³/min) |
| HV22RS(ACED) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 108.4 cfm (3.07 m³/min) |
| HV22RS(AERD) | V22ACER08-4035V400 | 29 HP (22.0 kW) | VSD | 3ph/400V | 50 Hz | 870-1800 rpm | 145.0 psi (10.0 bar) | 108.4 cfm (3.07 m³/min) |
