Hydrovane Rotary Compressors

Vertical Enclosed Variable Speed Rotary Vane Compressors

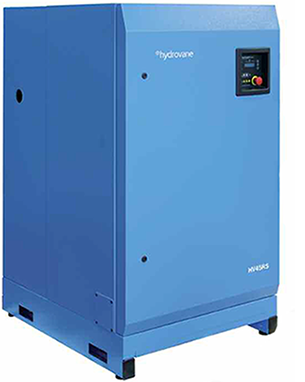

Hydrovane Vertical Enclosed Regulated Speed

The Hydrovane HV (ACE) RS series of vertical enclosed regulated speed rotary vane compressors provide a variable speed offering for the vertical enclosed Hydrovane product selection. While fixed speed rotary compressors are most efficient in continuous duty applications, regulated speed machines optimize energy efficiency when operated below full load capacity. The HV (ACE) RS series offers all of the same features and benefits of the vertical enclosed fixed speed range, with the added benefit of up to 50% energy savings due to decreased electricity consumption. These units produce only the amount of air required to meet application demand.

Hydrovane regulated speed rotary vane compressors come as standard with line reactors and built-in EMC filter. The inverter drive efficiently matches energy consumption with air demand, and the reduced energy venting system (REVS) also provides energy savings. This system supplies a low starting current and reduces off load power to 25% by rapidly venting internal pressure. As with the vertical enclosed fixed speed HV (ACE) series, the small footprint and low noise levels of the vertical enclosed HV (ACE) RS range allow for easy installation and point of use application.

An industry leading Advance 10 year extended warranty is available on all Hydrovane standard products (Unless specified).


HV RS Series 10-60 HP (7.5-45 kw)


50 Hz Model Range

Model Part Number HP Starter Voltage Hz Speed Delivery Pressure Volume
400V, 3 Phase, 87 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/400V 50 Hz 870-2220 87.0 psi (6.0 bar) 41.7 cfm (1.18 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/400V 50 Hz 870-1900 87.0 psi (6.0 bar) 61.4 cfm (1.74 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/400V 50 Hz 870-1800 87.0 psi (6.0 bar) 80.9 cfm (2.29 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/400V 50 Hz 870-1800 87.0 psi (6.0 bar) 104.5 cfm (2.96 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/400V 50 Hz 870-1800 87.0 psi (6.0 bar) 124.7 cfm (3.53 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/400V 50 Hz 870-1700 87.0 psi (6.0 bar) 190.0 cfm (5.38 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/400V 50 Hz 870-1700 87.0 psi (6.0 bar) 217.9 cfm (6.17 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/400V 50 Hz 870-1700 87.0 psi (6.0 bar) 263.8 cfm (7.47 m³/min)
400V, 3 Phase, 116 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/400V 50 Hz 870-2220 116.0 psi (8.0 bar) 37.4 cfm (1.06 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/400V 50 Hz 870-1900 116.0 psi (8.0 bar) 55.1 cfm (1.56 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/400V 50 Hz 870-1800 116.0 psi (8.0 bar) 71.7 cfm (2.03 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/400V 50 Hz 870-1800 116.0 psi (8.0 bar) 96.8 cfm (2.74 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/400V 50 Hz 870-1800 116.0 psi (8.0 bar) 113.7 cfm (3.22 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/400V 50 Hz 870-1700 116.0 psi (8.0 bar) 172.0 cfm (4.87 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/400V 50 Hz 870-1700 116.0 psi (8.0 bar) 202.0 cfm (5.72 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/400V 50 Hz 870-1700 116.0 psi (8.0 bar) 243.7 cfm (6.90 m³/min)
400V, 3 Phase, 145 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/400V 50 Hz 870-2220 145.0 psi (10.0 bar) 33.5 cfm (0.95 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/400V 50 Hz 870-1900 145.0 psi (10.0 bar) 48.4 cfm (1.37 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/400V 50 Hz 870-1800 145.0 psi (10.0 bar) 60.7 cfm (1.72 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/400V 50 Hz 870-1800 145.0 psi (10.0 bar) 88.6 cfm (2.51 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/400V 50 Hz 870-1800 145.0 psi (10.0 bar) 108.4 cfm (3.07 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/400V 50 Hz 870-1700 145.0 psi (10.0 bar) 159.3 cfm (4.51 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/400V 50 Hz 870-1700 145.0 psi (10.0 bar) 186.1 cfm (5.27 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/400V 50 Hz 870-1700 145.0 psi (10.0 bar) 229.9 cfm (6.51 m³/min)

60 Hz 460V Model Range

Model Part Number HP Starter Voltage Hz Speed Delivery Pressure Volume
460V, 3 Phase, 87 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/460V 60 Hz 870-2220 87.0 psi (6.0 bar) 41.7 cfm (1.18 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/460V 60 Hz 870-1900 87.0 psi (6.0 bar) 61.4 cfm (1.74 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/460V 60 Hz 870-1800 87.0 psi (6.0 bar) 80.9 cfm (2.29 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/460V 60 Hz 870-1800 87.0 psi (6.0 bar) 104.5 cfm (2.96 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/460V 60 Hz 870-1800 87.0 psi (6.0 bar) 124.7 cfm (3.53 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/460V 60 Hz 870-1700 87.0 psi (6.0 bar) 190.0 cfm (5.38 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/460V 60 Hz 870-1700 87.0 psi (6.0 bar) 217.9 cfm (6.17 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/460V 60 Hz 870-1700 87.0 psi (6.0 bar) 263.8 cfm (7.47 m³/min)
460V, 3 Phase, 116 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/460V 60 Hz 870-2220 116.0 psi (8.0 bar) 37.4 cfm (1.06 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/460V 60 Hz 870-1900 116.0 psi (8.0 bar) 55.1 cfm (1.56 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/460V 60 Hz 870-1800 116.0 psi (8.0 bar) 71.7 cfm (2.03 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/460V 60 Hz 870-1800 116.0 psi (8.0 bar) 96.8 cfm (2.74 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/460V 60 Hz 870-1800 116.0 psi (8.0 bar) 113.7 cfm (3.22 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/460V 60 Hz 870-1700 116.0 psi (8.0 bar) 172.0 cfm (4.87 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/460V 60 Hz 870-1700 116.0 psi (8.0 bar) 202.0 cfm (5.72 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/460V 60 Hz 870-1700 116.0 psi (8.0 bar) 243.7 cfm (6.90 m³/min)
460V, 3 Phase, 145 PSI target pressure setting
HV07RS(ACE) V07ACE07-4035V500 10 HP (7.5 kW) VSD 3ph/460V 60 Hz 870-2220 145.0 psi (10.0 bar) 33.5 cfm (0.95 m³/min)
HV11RS(ACE) V11ACE08-4035V600 15 HP (11.0 kW) VSD 3ph/460V 60 Hz 870-1900 145.0 psi (10.0 bar) 48.4 cfm (1.37 m³/min)
HV15RS(ACE) V15ACE08-4035V600 20 HP (15.0 kW) VSD 3ph/460V 60 Hz 870-1800 145.0 psi (10.0 bar) 60.7 cfm (1.72 m³/min)
HV18RS(ACE) V18ACE08-4035V400 25 HP (18.5 kW) VSD 3ph/460V 60 Hz 870-1800 145.0 psi (10.0 bar) 88.6 cfm (2.51 m³/min)
HV22RS(ACE) V22ACE08-4035V400 29 HP (22.0 kW) VSD 3ph/460V 60 Hz 870-1800 145.0 psi (10.0 bar) 108.4 cfm (3.07 m³/min)
HV30RS(ACE) V30ACE08-4035V300 40 HP (30.0 kW) VSD 3ph/460V 60 Hz 870-1700 145.0 psi (10.0 bar) 159.3 cfm (4.51 m³/min)
HV37RS(ACE) V37ACE08-4035V300 50 HP (37.0 kW) VSD 3ph/460V 60 Hz 870-1700 145.0 psi (10.0 bar) 186.1 cfm (5.27 m³/min)
HV45RS(ACE) V45AEC08-4035V300 60 HP (45.0 kW) VSD 3ph/460V 60 Hz 870-1700 145.0 psi (10.0 bar) 229.9 cfm (6.51 m³/min)
